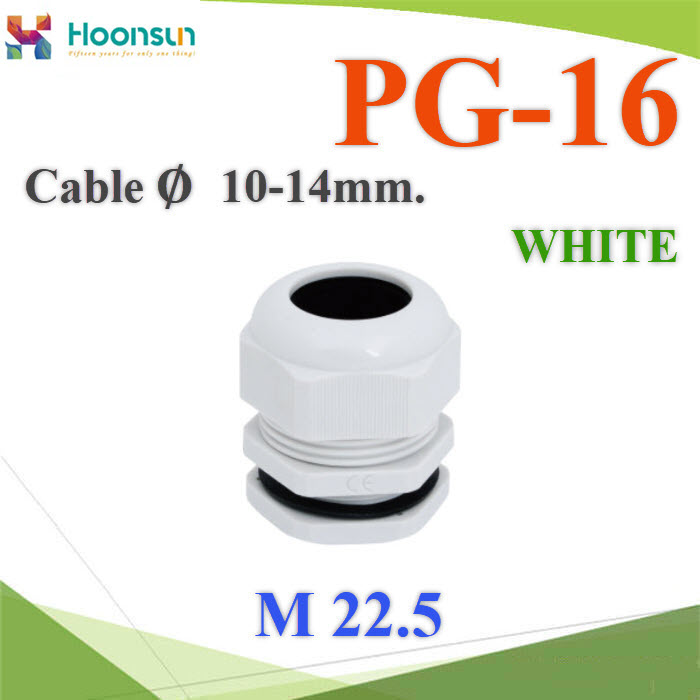

Cable gland PG-16 Plastic Waterproof With Locknut rubber White


Code : PG-16-WHITE

Cable gland PG-16 Plastic Waterproof With Locknut rubber White

    PG Type Plastic Waterproof Cable Gland. A Cable Gland is a device which attach and secure the end of an electrical cable to the equipment. The purpose of a cable gland is to seal the cable and retain it in the electrical equipment that it is attached to.
It should maintain the ingress protection rating of the enclosures, keeping out dust and moisture but it should also prevent the cable from being pulled out of the equipment and from being twisted whilst connected to equipment. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables.
Adopting nylon PA66 certificated by UL. Nitrile butadiene rubber (NBR), Weatheringresistance rubber (EPDM) Working temperature -40C. to 100C. in static state, instantaneous heat resistance up to 120C. -20C. to 80C. in dynamic state, instantaneous heat resistance up to 100C.. IP68 (Rotate the part, and use O ring)

  Ready to send immediately

www.Solar-Thailand.co.th/EN/Product/PG-16-WHITE/

Cable gland PG-16 Plastic Waterproof With Locknut rubber White

Product group : [ 53. Cable Gland Connector ]


Paid by Paypal Payoneer QRcode

Code : PG-16-WHITE

Cable gland PG-16 Plastic Waterproof With Locknut rubber White

    PG Type Plastic Waterproof Cable Gland. A Cable Gland is a device which attach and secure the end of an electrical cable to the equipment. The purpose of a cable gland is to seal the cable and retain it in the electrical equipment that it is attached to.
It should maintain the ingress protection rating of the enclosures, keeping out dust and moisture but it should also prevent the cable from being pulled out of the equipment and from being twisted whilst connected to equipment. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables.
Adopting nylon PA66 certificated by UL. Nitrile butadiene rubber (NBR), Weatheringresistance rubber (EPDM) Working temperature -40C. to 100C. in static state, instantaneous heat resistance up to 120C. -20C. to 80C. in dynamic state, instantaneous heat resistance up to 100C.. IP68 (Rotate the part, and use O ring)

  Ready to send immediately

www.Solar-Thailand.co.th/EN/Product/PG-16-WHITE/

Cable gland PG-16 Plastic Waterproof With Locknut rubber White

Product group : [ Cable Gland Connector ]


Line ID. @Solar-Thailand

Please Add add friends. Line Skype WhatApp Wechat

Online Live Chat


Cable gland PG-16 Plastic Waterproof With Locknut rubber White

Code : PG-16-WHITE

Cable gland PG-16 Plastic Waterproof With Locknut rubber White

PG Type Plastic Waterproof Cable Gland. A Cable Gland is a device which attach and secure the end of an electrical cable to the equipment. The purpose of a cable gland is to seal the cable and retain it in the electrical equipment that it is attached to.
It should maintain the ingress protection rating of the enclosures, keeping out dust and moisture but it should also prevent the cable from being pulled out of the equipment and from being twisted whilst connected to equipment. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables.
Adopting nylon PA66 certificated by UL. Nitrile butadiene rubber (NBR), Weatheringresistance rubber (EPDM) Working temperature -40C. to 100C. in static state, instantaneous heat resistance up to 120C. -20C. to 80C. in dynamic state, instantaneous heat resistance up to 100C.. IP68 (Rotate the part, and use O ring)


Item specifics

Type   :   PG-16
Brand   :   SINO
Cable Range   :   10-14 mm.
Thread O. D. AG เจาะรู   :   22.5 mm.
Thread Length GL   :   10 mm.
Spanner Size   :   27 mm.
Working temperature   :   -40 to 100C
Characteristics   :   IP68
สี   :   ขาว White

Download documents

    Product Datasheet PG-16-WHITE

    Certificate CE

    Certificate UV Exposure

    Certificate IP68 IEC60529

    Certificate IP69 ISO60653

    Test Report CE EN62444
