Cable gland PG-9 Plastic Waterproof With Locknut rubber White


We accept Bank Transfer


We accept credit cards
Visa, MasterCard , Paypal



Related Products

Code : PG-9-WHITE

Cable gland PG-9 Plastic Waterproof With Locknut rubber White

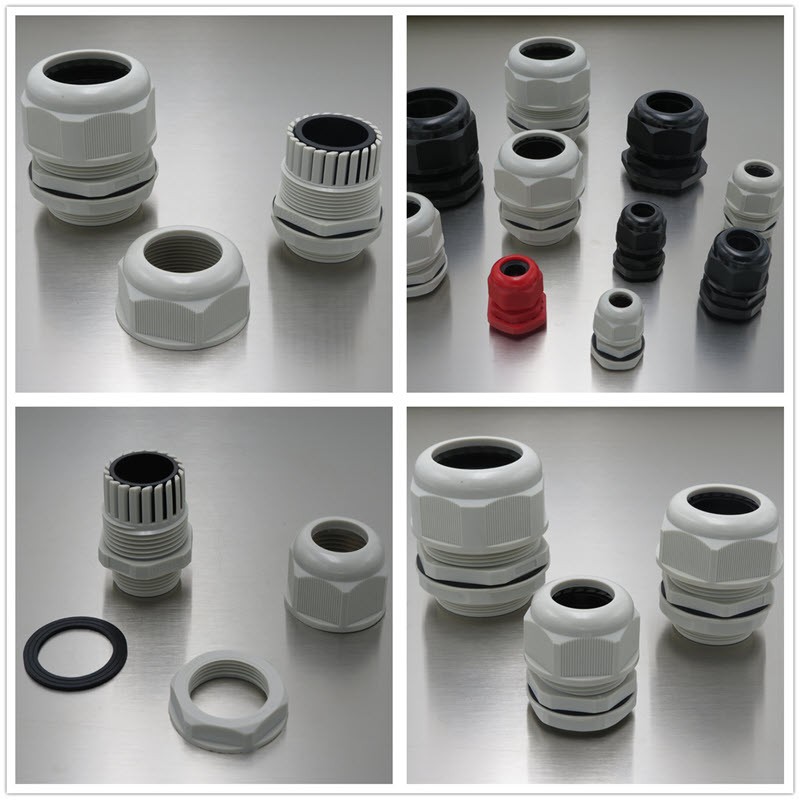

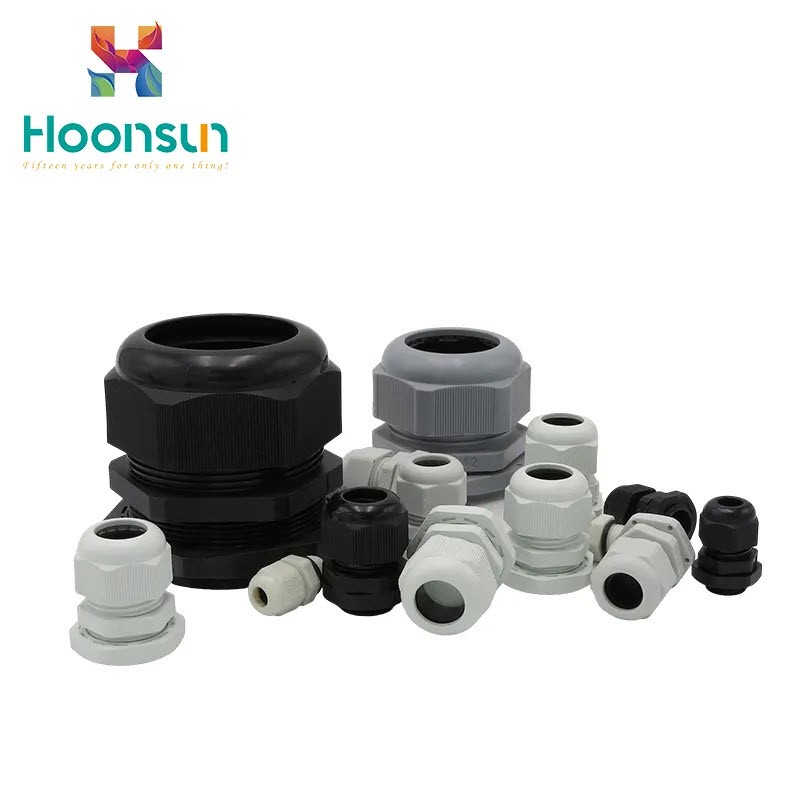

    PG Type Plastic Waterproof Cable Gland. A Cable Gland is a device which attach and secure the end of an electrical cable to the equipment. The purpose of a cable gland is to seal the cable and retain it in the electrical equipment that it is attached to.
It should maintain the ingress protection rating of the enclosures, keeping out dust and moisture but it should also prevent the cable from being pulled out of the equipment and from being twisted whilst connected to equipment. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables.
Adopting nylon PA66 certificated by UL. Nitrile butadiene rubber (NBR), Weatheringresistance rubber (EPDM) Working temperature -40Celsius to 100Celsius in static state, instantaneous heat resistance up to 120Celsius -20Celsius to 80Celsius in dynamic state, instantaneous heat resistance up to 100Celsius. IP68 (Rotate the part, and use O ring)



Price :   5.00 THB


  Group product : Cable Gland Connector

  Item specifics
Type   :   PG-9
Brand   :   SINO
Cable Range   :   4-8 mm.

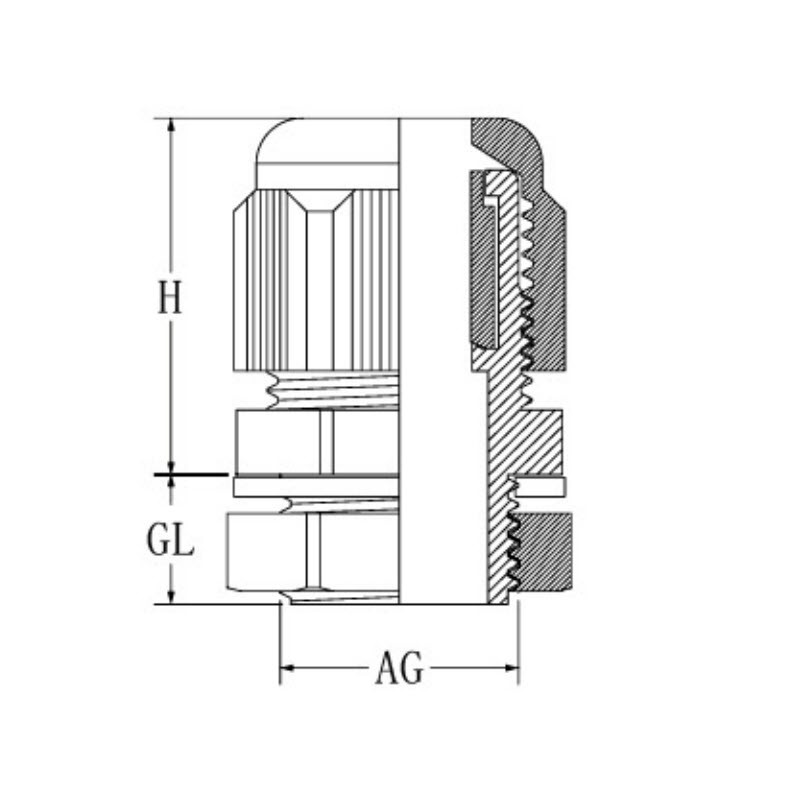

Thread O. D. AG เจาะรู   :   15.2 mm.
Thread Length GL   :   8 mm.
Spanner Size   :   19 mm.
Working temperature   :   -40C to 100C
Characteristics   :   IP68
สี   :   ขาว White

  Download
        Certificate CE
        Certificate UV Exposure
        Certificate IP68 IEC60529
        Certificate IP69 ISO60653
        Test Report CE EN62444
