www.Solar-Thailand.co.th/EN/Product/PV1F-2x2.5/

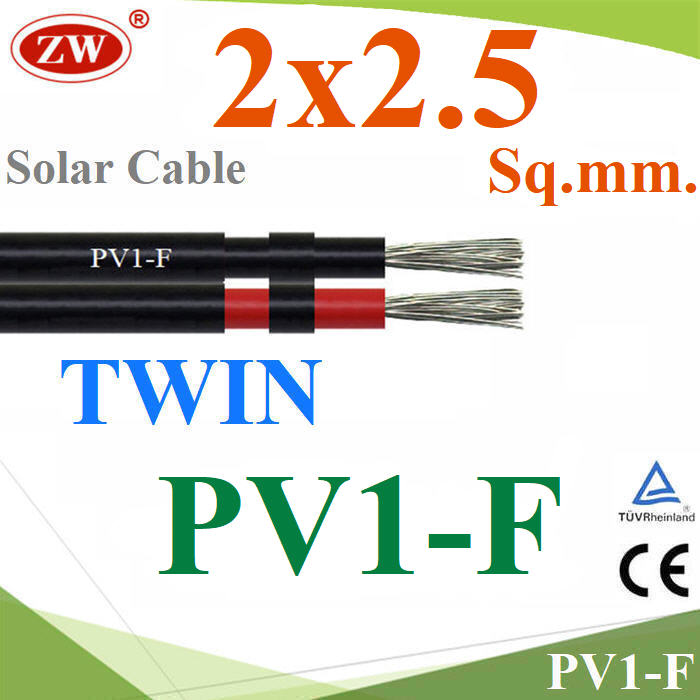

PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN


Code : PV1F-2x2.5

PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN

    PHOTOVOLTAIC CABLE (PV1-F) 2x2.5 Sq.mm. TWIN Solar Cable Solar cable is the interconnection cable used in photovoltaic power generation.
A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.
Core Conductor Tinned annealed copper (stranded core)
Insulation Electron-beam cross-linked Polyolefin (XLPE)
Nominal Volvatage Uo/U= 600/1000VAC, 1000/1800VDC
Tmperature Rating -45 upto 120C
Ambient Temperature 25 years ( -40 upto 90)
TUV Rheinland approval according to 2 PfG 1169/08.2007 1.5 Sq.mm. to 35 Sq.mm., UL. Certificate No. T 50372366 01

  Ready to send immediately

www.Solar-Thailand.co.th/EN/Product/PV1F-2x2.5/

PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN

Product group : [ 28. 2.5mm Solar Cable PV1-F ]


Paid by Paypal Payoneer QRcode

Code : PV1F-2x2.5

PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN

    PHOTOVOLTAIC CABLE (PV1-F) 2x2.5 Sq.mm. TWIN Solar Cable Solar cable is the interconnection cable used in photovoltaic power generation.
A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.
Core Conductor Tinned annealed copper (stranded core)
Insulation Electron-beam cross-linked Polyolefin (XLPE)
Nominal Volvatage Uo/U= 600/1000VAC, 1000/1800VDC
Tmperature Rating -45 upto 120C
Ambient Temperature 25 years ( -40 upto 90)
TUV Rheinland approval according to 2 PfG 1169/08.2007 1.5 Sq.mm. to 35 Sq.mm., UL. Certificate No. T 50372366 01

  Ready to send immediately

www.Solar-Thailand.co.th/EN/Product/PV1F-2x2.5/

PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN

Product group : [ 2.5mm Solar Cable PV1-F ]


Line ID. @541prymt

Please Add add friends. Line Skype WhatApp Wechat

Online Live Chat


PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN

Code : PV1F-2x2.5

PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN

PHOTOVOLTAIC CABLE (PV1-F) 2x2.5 Sq.mm. TWIN Solar Cable Solar cable is the interconnection cable used in photovoltaic power generation.
A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.
Core Conductor Tinned annealed copper (stranded core)
Insulation Electron-beam cross-linked Polyolefin (XLPE)
Nominal Volvatage Uo/U= 600/1000VAC, 1000/1800VDC
Tmperature Rating -45 upto 120C
Ambient Temperature 25 years ( -40 upto 90)
TUV Rheinland approval according to 2 PfG 1169/08.2007 1.5 Sq.mm. to 35 Sq.mm., UL. Certificate No. T 50372366 01


Item specifics

Photovoltaic Solar Cable PV1-F   :   2x2.5 Sq.mm.
Brand   :   ZW Cable
Current Carring Capacity   :   41A
Normal voltage   :   1000/1800V DC
Resistance   :   8.21 Ohm/Km
Construction   :   50/0.25 mm.
Max.conductor temperature   :   120 C
เส้นคู่   :   สีด้านใน แดง-ดำ
ความยาว   :   ระบุจำนวนความยาว

Download documents

    Product Datasheet PV1F-2x2.5

    Certificate TUV

    Certificate CE

    Certificate ISO

    Certificate CCC IEC

    Certificate CCC BVVB
