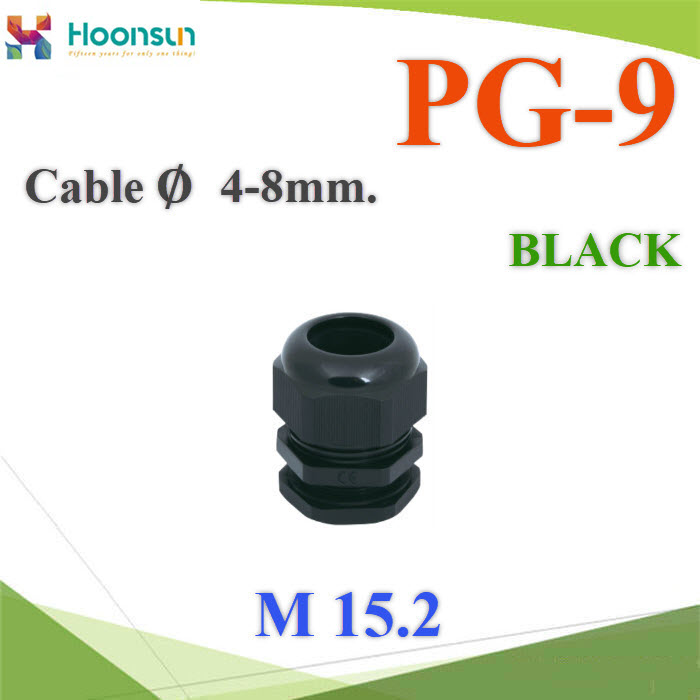

Cable gland PG-9 Plastic Waterproof With Locknut rubber Black


Code : PG-9-BLACK

Cable gland PG-9 Plastic Waterproof With Locknut rubber Black

    PG Type Plastic Waterproof Cable Gland. A Cable Gland is a device which attach and secure the end of an electrical cable to the equipment. The purpose of a cable gland is to seal the cable and retain it in the electrical equipment that it is attached to.
It should maintain the ingress protection rating of the enclosures, keeping out dust and moisture but it should also prevent the cable from being pulled out of the equipment and from being twisted whilst connected to equipment. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables.
Adopting nylon PA66 certificated by UL. Nitrile butadiene rubber (NBR), Weatheringresistance rubber (EPDM) Working temperature -40C. to 100C. in static state, instantaneous heat resistance up to 120C. -20C. to 80C. in dynamic state, instantaneous heat resistance up to 100C.. IP68 (Rotate the part, and use O ring)

  Ready to send immediately

www.Solar-Thailand.co.th/EN/Product/PG-9-BLACK/

Cable gland PG-9 Plastic Waterproof With Locknut rubber Black

Product group : [ 53. Cable Gland Connector ]


Paid by Paypal Payoneer QRcode

Code : PG-9-BLACK

Cable gland PG-9 Plastic Waterproof With Locknut rubber Black

    PG Type Plastic Waterproof Cable Gland. A Cable Gland is a device which attach and secure the end of an electrical cable to the equipment. The purpose of a cable gland is to seal the cable and retain it in the electrical equipment that it is attached to.
It should maintain the ingress protection rating of the enclosures, keeping out dust and moisture but it should also prevent the cable from being pulled out of the equipment and from being twisted whilst connected to equipment. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables.
Adopting nylon PA66 certificated by UL. Nitrile butadiene rubber (NBR), Weatheringresistance rubber (EPDM) Working temperature -40C. to 100C. in static state, instantaneous heat resistance up to 120C. -20C. to 80C. in dynamic state, instantaneous heat resistance up to 100C.. IP68 (Rotate the part, and use O ring)

  Ready to send immediately

www.Solar-Thailand.co.th/EN/Product/PG-9-BLACK/

Cable gland PG-9 Plastic Waterproof With Locknut rubber Black

Product group : [ Cable Gland Connector ]


Line ID. @Solar-Thailand

Please Add add friends. Line Skype WhatApp Wechat

Online Live Chat


Cable gland PG-9 Plastic Waterproof With Locknut rubber Black

Code : PG-9-BLACK

Cable gland PG-9 Plastic Waterproof With Locknut rubber Black

PG Type Plastic Waterproof Cable Gland. A Cable Gland is a device which attach and secure the end of an electrical cable to the equipment. The purpose of a cable gland is to seal the cable and retain it in the electrical equipment that it is attached to.
It should maintain the ingress protection rating of the enclosures, keeping out dust and moisture but it should also prevent the cable from being pulled out of the equipment and from being twisted whilst connected to equipment. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables.
Adopting nylon PA66 certificated by UL. Nitrile butadiene rubber (NBR), Weatheringresistance rubber (EPDM) Working temperature -40C. to 100C. in static state, instantaneous heat resistance up to 120C. -20C. to 80C. in dynamic state, instantaneous heat resistance up to 100C.. IP68 (Rotate the part, and use O ring)


Item specifics

Type   :   PG-9
Brand   :   SAICHUANG
Cable Range   :   4-8 mm.
Thread O. D. AG เจาะรู   :   15.2 mm.
Thread Length GL   :   8 mm.
Spanner Size   :   19 mm.
Working temperature   :   -40 to 100C
Characteristics   :   IP68
สี   :   ดำ Black

Download documents

    Product Datasheet PG-9-BLACK

    Certificate CE EN62444

    Ceritficate ISO9001

    Certificate RoHS

    Datasheet PG
